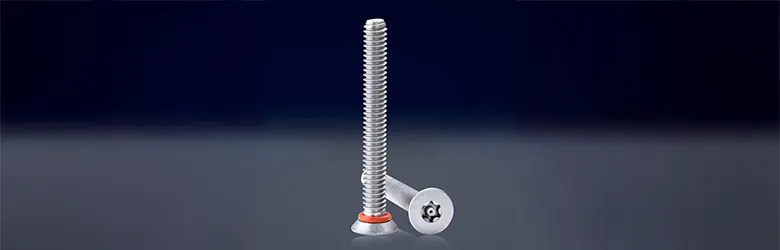

6-lobe Flat Head Seal Screws

ZAGO’s 6-Lobe Flat Head Seal Screws deliver flush-mount sealing power. Each fastener integrates a custom-engineered, chemically resistant rubber O-ring that forms a 360-degree barrier against air, water, oil, and dust upon installation. The flat, countersunk design sits flush with the surface, providing a clean, smooth finish without sacrificing protection. With fewer components, ZAGO’s unified design promotes faster assembly while improving protection from a variety of contaminants.

Ideal for enclosures, panels, and assemblies requiring a flush finish, these screws are designed to withstand pressure, temperature and environmental extremes. ZAGO seal screws are reusable, maintenance-free, and proven in mission-critical applications like aerospace, avionics, EV control housing and robotics, amongst others.

All components are fully customizable (see detail below) and engineered-to-order to ensure optimal performance. ZAGO’s team of US-based engineers is available to share their expertise and help make the best choice.

MOQ and lead times may vary based on configuration.

Product Benefits

• Zero-Leak Seal: 360° O-ring seal protects equipment from water, dirt, and air contaminants
• No Extra Components: Built-in O-ring replaces need for gaskets, washers, or thread sealants
• Flush Finish: Flat head creates a smooth finish without sacrificing protection
• Easy Installation: No additional prep or sealant required
• Designed to Last: Can be reused and maintained for years. Helps avoid costs related to system failure and repair
• Customizable to Spec: Engineered-to-order options including corrosion-resistant materials, thread, plating and more; ZAGO team available for consult

Key Technical Features

Ideal Applications

• Aerospace panels and enclosures
• Defense and avionics systems
• Medical and laboratory equipment
• EV control housing
• Marine and outdoor electronics
• Precision instruments requiring a smooth sealed surface
